COMMERCIAL AQUACULTURE TANKS

Fish Farming Tanks for Commercial Aquaculture Projects

Choose from three fish tank structures for different capacities, site conditions and installation requirements. FUUSHAN supplies configurable fish farming tanks for biofloc systems, nursery operations, grow-out farming and other commercial aquaculture projects.

3 Tank Structures · Custom Sizes · Configurable Liners · Project-Based Supply
Circular fish farming tank with flexible PVC liner

Three Tank Configurations

Choose the Right Fish Tank Structure

Not every aquaculture project needs the same tank structure. FUUSHAN offers three main fish farming tank configurations, ranging from lightweight portable systems to rigid galvanized-sheet tanks for larger installations. Choose according to your required capacity, site conditions, installation method and how frequently the tank needs to be moved or reassembled.

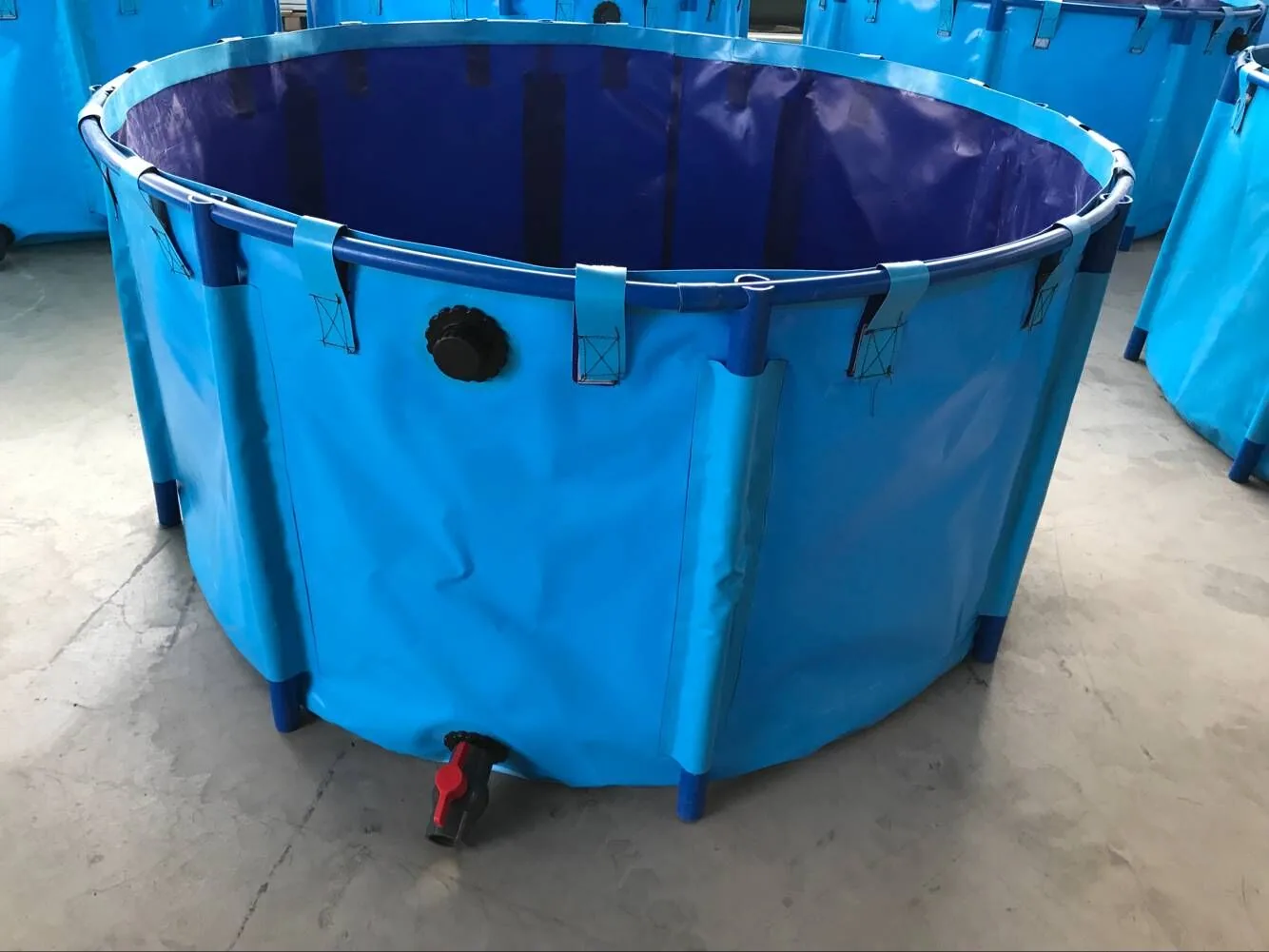

Plastic-tube-frame fish farming tank with flexible PVC liner
01 LIGHTWEIGHT & PORTABLE

Plastic Tube Frame Fish Farming Tank

A lightweight frame system designed for projects where simple handling, quick installation and portability are important. The plastic tube support structure works with a flexible liner to create a practical tank for smaller aquaculture systems and temporary installations.

Best suited for:
  • Nursery and fingerling holding
  • Small fish farms
  • Temporary aquaculture setups
  • Projects requiring frequent relocation
Key advantage:

Lightweight structure with simple handling and installation.

View Plastic Tube Frame Tanks →

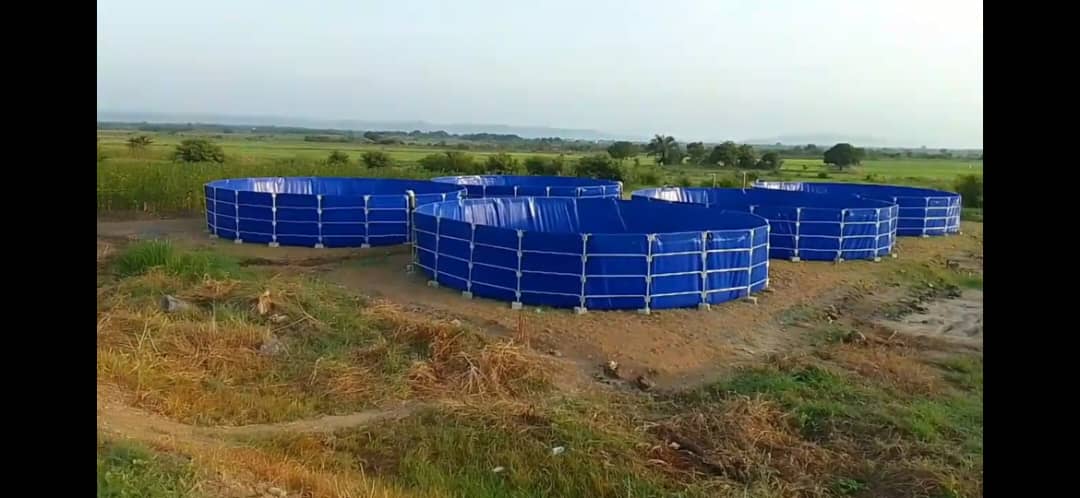

Galvanized steel pipe frame fish farming tank with PVC liner
02 MODULAR & COMMERCIAL

Galvanized Steel Pipe Frame Fish Farming Tank

A stronger modular frame structure for commercial aquaculture projects requiring greater support while maintaining flexible installation. Galvanized steel pipes form the supporting frame around the liner and can be configured according to the required tank dimensions and project layout.

Best suited for:
  • Commercial fish farming
  • Biofloc systems
  • Nursery and grow-out projects
  • Modular aquaculture installations
Key advantage:

A practical balance between structural support, modular assembly and project flexibility.

View Galvanized Pipe Frame Tanks →

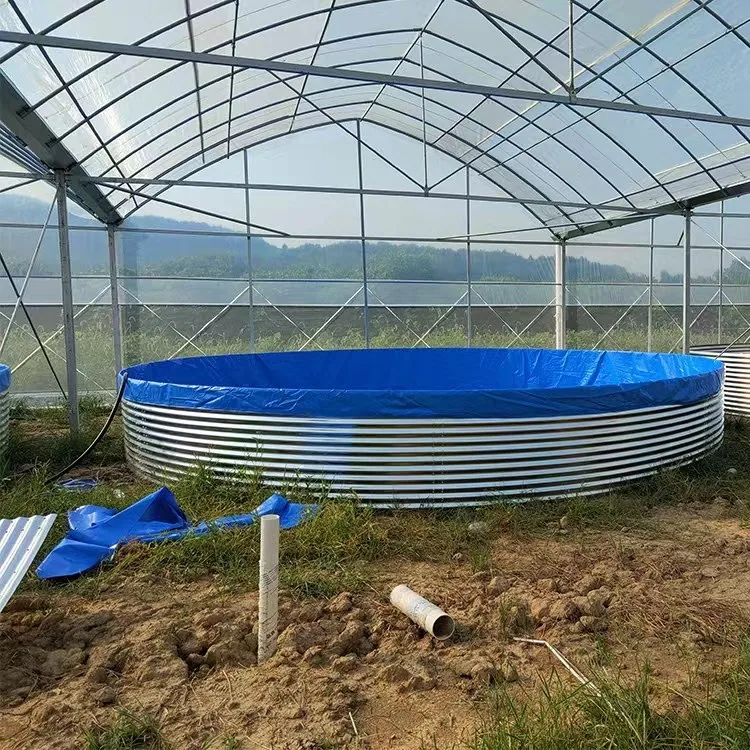

Galvanized sheet fish farming tank with flexible PVC liner
03 RIGID & HIGH CAPACITY

Galvanized Sheet Fish Farming Tank

A rigid circular tank structure built from galvanized steel sheet panels and an internal flexible liner. This configuration is designed for larger-capacity aquaculture projects where stronger wall support and a more fixed installation are required.

Best suited for:
  • Commercial fish farms
  • Larger-capacity tanks
  • RAS-related projects
  • Semi-permanent aquaculture installations
Key advantage:

Rigid galvanized-sheet construction for larger and more demanding tank installations.

View Galvanized Sheet Tanks →

Side-by-Side Comparison

Compare the 3 Fish Tank Types

Choosing the right structure depends on more than tank capacity. Consider installation conditions, mobility, required structural support and the way the tank will be used.

Feature
Plastic Tube Frame
Galvanized Pipe Frame
Galvanized Sheet
Support Structure
Plastic tube frame
Galvanized steel pipe frame
Galvanized sheet panels
Mobility
High
Medium
Low
Typical Project Scale
Small / temporary
Medium / commercial
Medium to large
Installation
Lightweight assembly
Modular frame assembly
Galvanized panel assembly
Tank Size
Project-specific
Project-specific
Multiple standard and custom sizes
Best For
Nursery, small farms, temporary use
Biofloc and commercial farming
Larger-capacity commercial systems
Customization
Available
Available
Available

Not sure which structure to use?

Send us your required capacity, installation location and farming method. We can help you compare the available structures before quotation.

Get a Tank Recommendation →

Selection Guidance

Which Fish Tank Should You Choose?

Need a lightweight tank that is easy to move?

Choose Plastic Tube Frame

Suitable when portability, simple handling and quick setup are more important than high structural rigidity.

Need a stronger modular system for commercial farming?

Choose Galvanized Steel Pipe Frame

A good option for commercial aquaculture projects that require stronger frame support while retaining modular installation.

Need a rigid structure for a larger tank?

Choose Galvanized Sheet

Designed for larger-capacity projects where stronger sidewall support and a more permanent installation are preferred.

Parameters & Dimensions

Sizes and Configurations

Fish farming tanks are configured according to the required water volume, available site area and farming system. Instead of forcing every project into one fixed tank specification, we review the tank structure and dimensions according to the intended application.

Structure 01

Plastic Tube Frame Tank

Configuration can be adjusted according to:

  • • Required tank capacity
  • • Tank diameter and height
  • • Site dimensions
  • • Liner specification
  • • Drainage arrangement
  • • Installation requirements

This structure is generally selected where lower weight and portability are important.

Structure 02

Galvanized Steel Pipe Frame Tank

Configuration can include:

  • • Tank dimensions
  • • Pipe-frame layout
  • • Liner specification
  • • Drain location
  • • Inlet and outlet requirements
  • • Project-specific accessories

This structure is suitable for modular commercial aquaculture installations.

Structure 03

Galvanized Sheet Tank Reference Sizes

Galvanized sheet tanks are available across a wider range of larger capacities:

Diameter approx. 3–20 m
Height approx. 0.95–2.8 m
Sheet thickness approx. 1.0 mm,1.2mm,2.0mm
Capacity approx. 7–266 m³

Final dimensions and structural configuration should be confirmed according to the required capacity and installation conditions.

Need a non-standard size? Send us your volume and area for review.

Liner & Outlets

Liner, Drainage and Custom Options

A fish tank is more than the external frame. The liner and water-handling configuration also need to match the way the farm operates.

Option 01

Liner Options

Flexible liners can be configured according to tank structure, required dimensions and project requirements.

The liner is manufactured to fit the selected support structure rather than treated as a separate generic component.

Option 02

Drainage Options

Drainage arrangements can be configured according to the farm layout and operating requirements.

Options may include different outlet positions and drainage layouts depending on the selected tank structure.

Option 03

Custom Configuration

Depending on the project, we can review:

  • • Tank diameter & height
  • • Water capacity
  • • Support structure
  • • Liner specification
  • • Drain position
  • • Inlet and outlet arrangement
  • • Packing requirements
Send Your Requirements →

PRODUCT REFERENCES

Fish Farming Tanks We’ve Made

Explore examples of fish farming tanks supplied by FUUSHAN in different structures, sizes and project configurations.

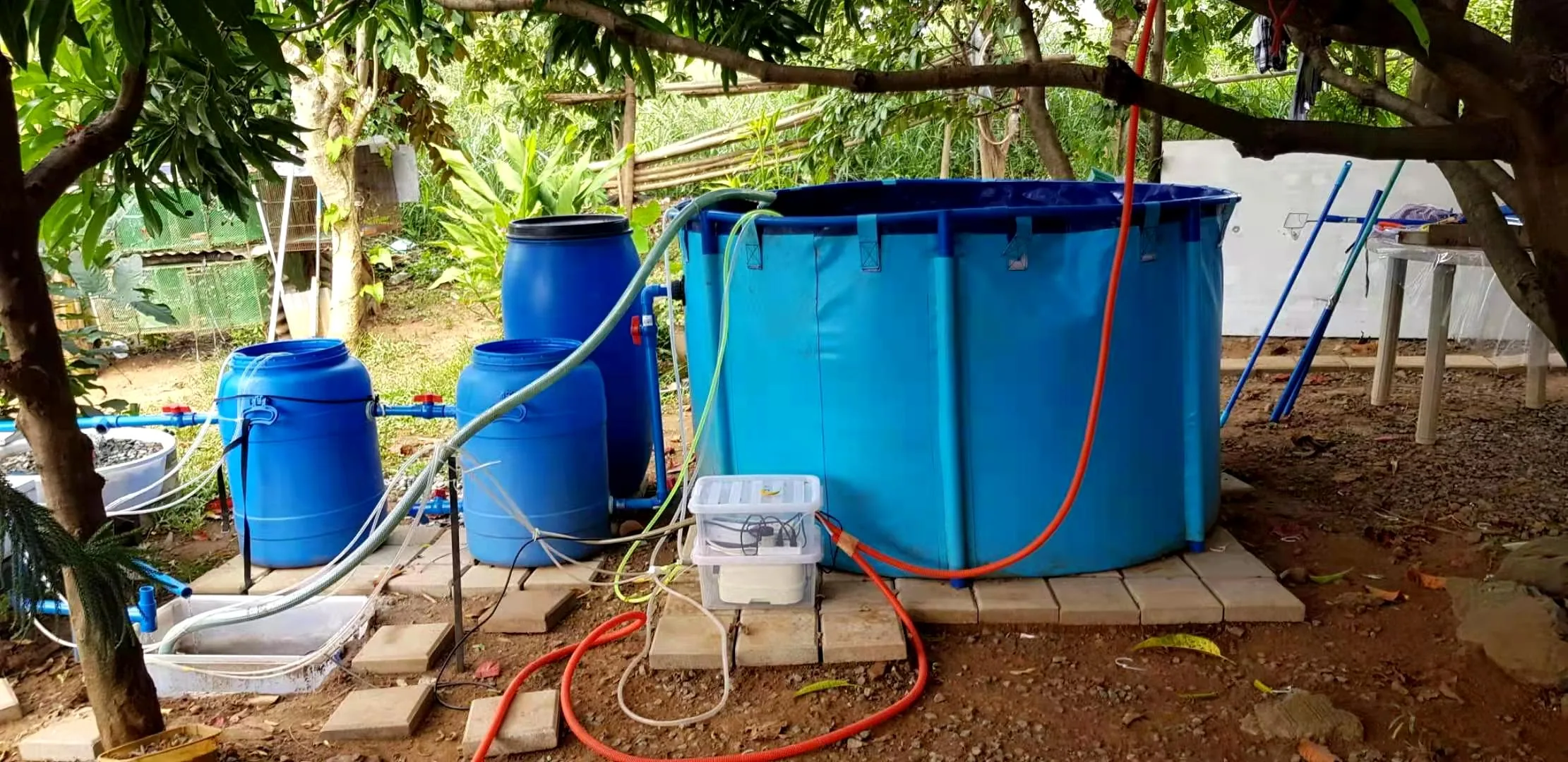

2,000 L portable plastic-tube-frame fish tank for nursery use

Plastic Tube Frame Fish Tank

2,000 L · Portable Nursery

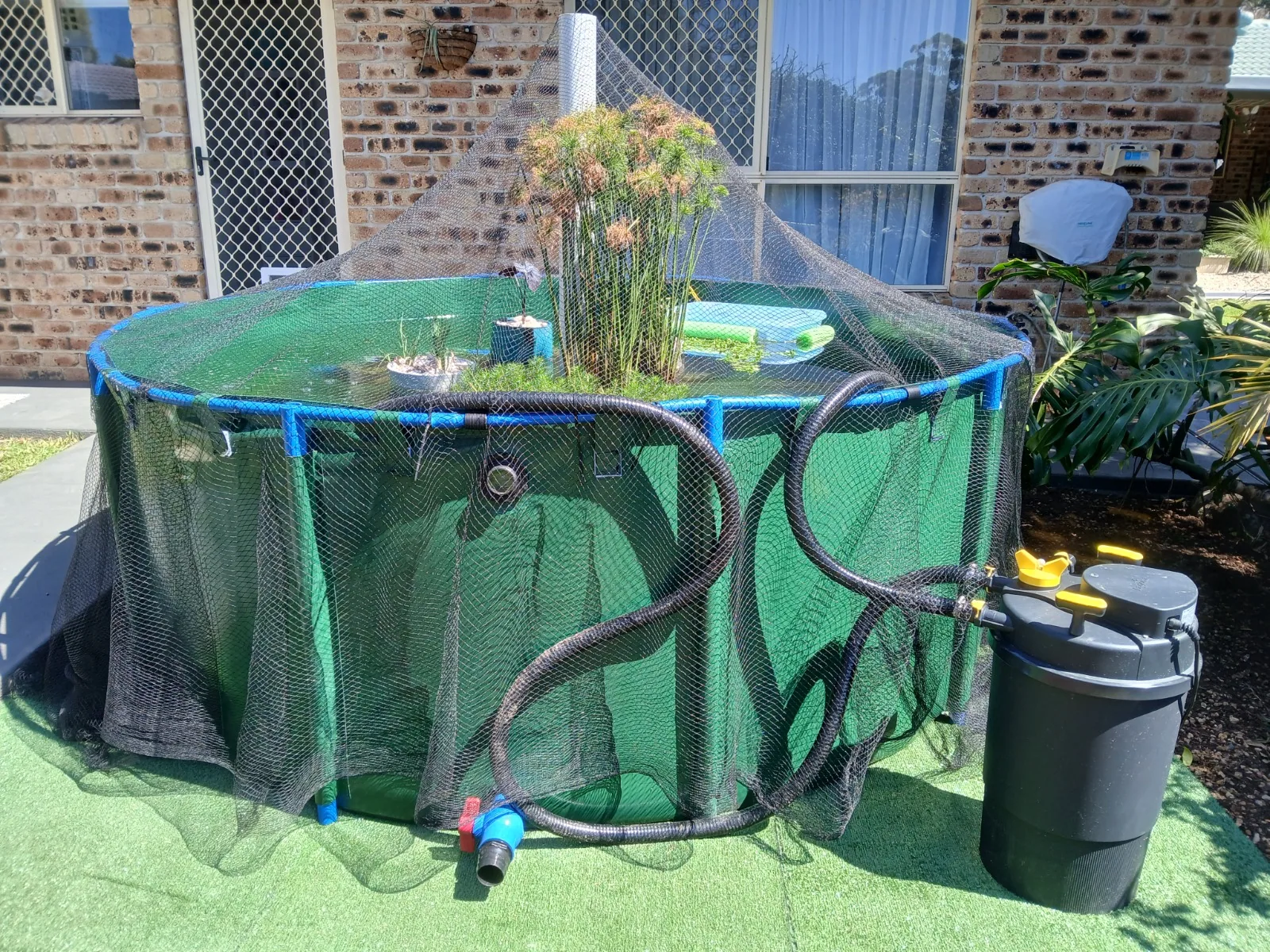

2,500 L modular PVC liner fish tank on plastic tube supports

Modular PVC Liner Fish Tank

2,500 L · Modular PVC Liner

Galvanized Sheet Fish Farming Tank Ø8m x 1.45m

Galvanized Sheet Fish Tank

Ø8 m × 1.45 m · Commercial RAS System

Looking for a different structure or project dimensions?

Request a Quote →

Production Systems

Aquaculture Applications

FUUSHAN fish farming tanks can be configured for different stages and types of aquaculture production.

Biofloc Fish Farming

Modular tanks for biofloc projects requiring controlled water volume and flexible farm layouts.

Nursery & Fingerling Holding

Tank configurations for juvenile fish, temporary holding and nursery operations.

Grow-Out Systems

Larger tank configurations for commercial grow-out applications and farm expansion projects.

Commercial Aquaculture Projects

Project-based tank supply for farms requiring multiple tanks, customized capacities or coordinated installation layouts.

Engineering Principles

Built Around the Project

Aquaculture tanks are often purchased as part of a larger farming system rather than as isolated products. That is why we focus on confirming the project requirements before finalizing the tank configuration.

Three Tank Structures

Choose between plastic tube, galvanized pipe and galvanized sheet structures according to the project.

Configurable Tank Sizes

Tank dimensions can be reviewed according to required capacity and available site space.

Liner & Drainage Configuration

Liner and drainage details can be matched to the selected tank structure and farm layout.

B2B Project Supply

We support commercial orders requiring multiple tank sizes, packing coordination and project-based production.

Workflow

From Tank Requirements to Installation

01

Confirm Requirements

Tell us the required capacity, quantity, application and installation location.

02

Select the Tank Structure

We review whether plastic tube, galvanized pipe or galvanized sheet construction is more suitable.

03

Confirm Dimensions & Configuration

Tank size, liner and drainage requirements are finalized before production.

04

Production & Preparation

The structural components and liner are prepared according to the confirmed configuration.

05

Packing & Shipment

Components are organized and packed according to the tank model and order requirements.

06

On-Site Assembly

The supporting structure is assembled first, followed by liner installation and drainage connection.

Multi-Tank System Supply

One Project May Need More Than One Tank Size

Commercial farms often require different tank capacities for nursery, holding and grow-out stages. Instead of treating each tank as an isolated item, FUUSHAN can review the overall requirement and help organize different sizes and structures within one project.

For multi-tank projects, please provide:

  • • Required quantity
  • • Capacity of each tank
  • • Available installation area
  • • Fish farming method
  • • Preferred tank structure, if known
  • • Drainage requirements
Request a Project Review →

Real project

Related project records

KEEP READING

Related Applications and Guides

GUIDE

How to Choose a Flexible Tank Manufacturer

Check materials, welding, inspection and custom capability before you commit to a supplier.

Read more → APPLICATION

Aquaculture & Biofloc Fish Farming

Fish farming tanks for grow-out, nursery, shrimp and biofloc systems, with galvanized frames, flexible liners and project-specific dimensions.

Read more →

FAQ

Frequently Asked Questions

What is the difference between the three fish tank structures?

The main difference is the external supporting structure. Plastic tube frame tanks prioritize lightweight handling and portability. Galvanized pipe frame tanks provide stronger modular support for commercial applications. Galvanized sheet tanks use rigid sheet panels and are generally better suited to larger-capacity installations.

Which tank is suitable for biofloc fish farming?

Both galvanized pipe frame and galvanized sheet tanks can be used for commercial aquaculture and biofloc-related projects depending on the required capacity, installation layout and structural requirements. For smaller or more temporary systems, a plastic tube frame may also be considered.

Can you customize the tank size?

Yes. Tank dimensions can be reviewed according to the required water capacity, installation area and selected structure. For galvanized sheet tanks, standard reference sizes are available, while project-specific configurations can also be discussed.

Can I choose the liner specification?

The liner specification can be configured according to the tank type and project requirements. We recommend confirming the intended application and tank dimensions before finalizing the liner.

Can the drainage position be customized?

Drainage layout and outlet position can be reviewed according to the selected tank structure and farm requirements. Providing your intended piping or drainage layout during quotation helps us recommend a more suitable configuration.

Which tank is easiest to move?

The Plastic Tube Frame Fish Farming Tank is generally the most suitable option when lightweight handling and frequent relocation are important.

Which structure is better for larger tanks?

For larger-capacity installations, galvanized sheet construction generally provides greater structural rigidity. The appropriate structure should still be selected according to tank dimensions, conditions and project requirements.

Can I order several different tank sizes in one project?

Yes. Commercial aquaculture projects can include multiple tank capacities and configurations within the same order. Providing a tank list or farm layout helps us review the project more efficiently.

Explore More

Related Products

Project-configured flexible tanks and containment products from the same manufacturing line.

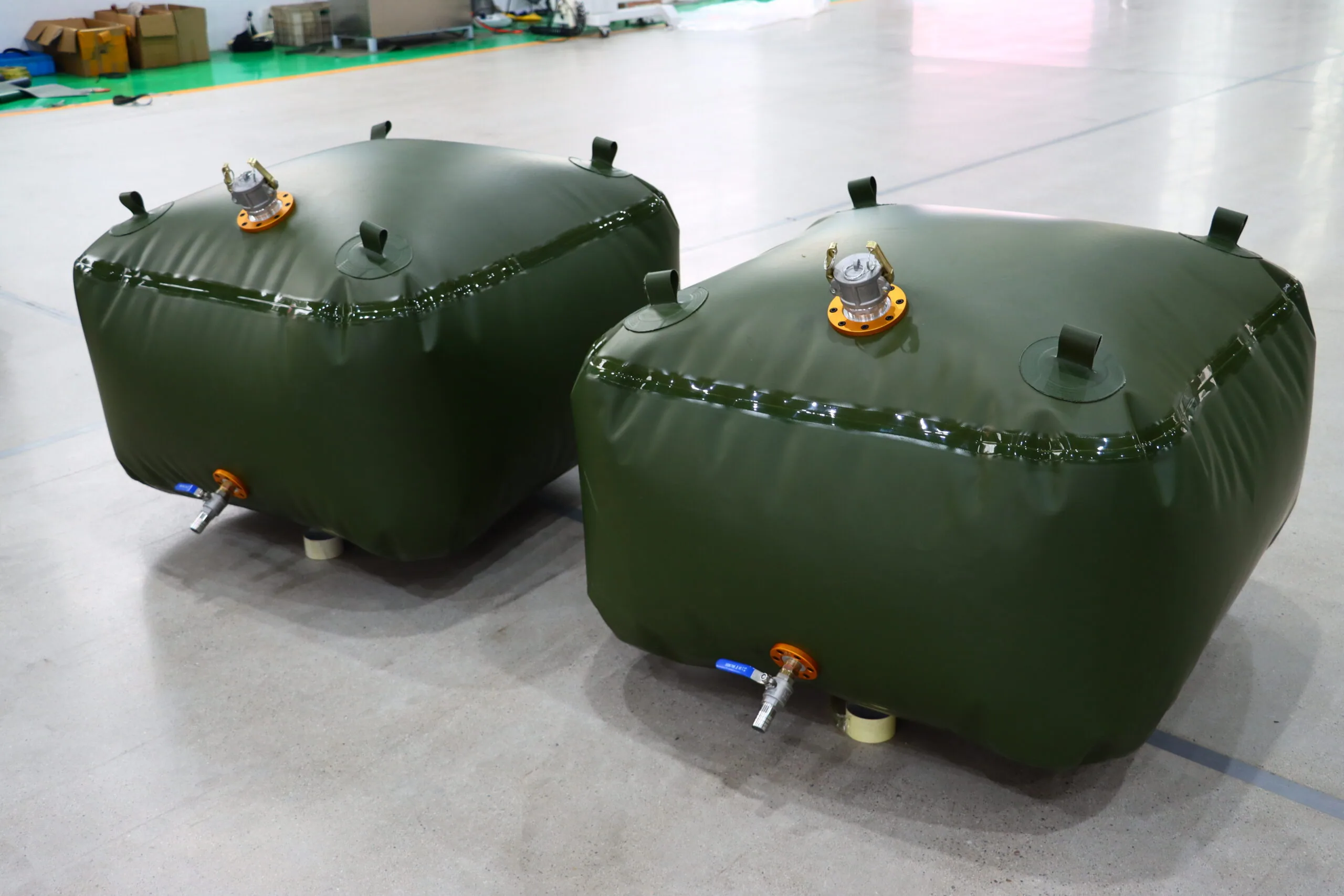

Green flexible fuel bladder tanks with outlet fittings
